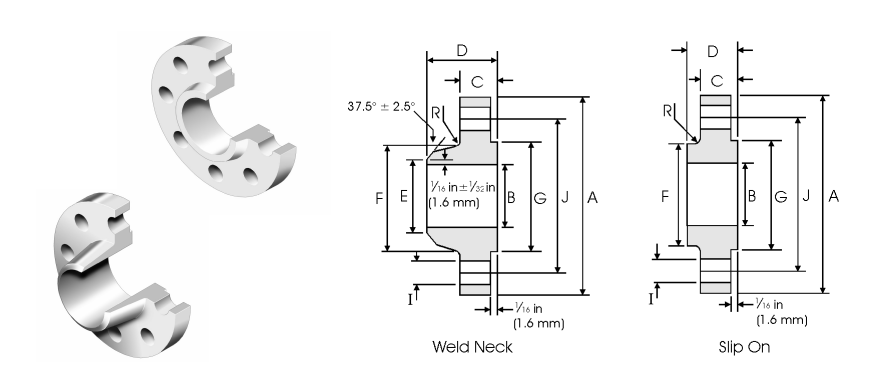

| Nominal Pipe Size | A: Overall Diameter (in) | A: Overall Diameter (mm) | B: Slip on Inside Diameter (in) | B: Slip on Inside Diameter (mm) | C: Flange Thickness (in) | C: Flange Thickness (mm) | D: WNF Overall Length (in) | D: WNF Overall Length (mm) | D: Slip on Overall Length (in) | D: Slip on Overall Length (mm) | E: WNF Diameter at Weld Bevel (in) | E: WNF Diameter at Weld Bevel (mm) | F: WNF / Slip on Hub Diameter (in) | F: WNF / Slip on Hub Diameter (mm) | G: Face Diameter (in) | G: Face Diameter (mm) | H: Number of Holes | I: Bolt Hole Diam. (in) | I: Bolt Hole Diam. (mm) | J: Diameter of Circle of Holes (in) | J: Diameter of Circle of Holes (mm) | R: Fillet (in) | R: Fillet (mm) | Weight: WNF (kg/piece) | Weight: Slip On (kg/piece) |
| 26 | 34 1/4 | 869.9 | 26 1/4 | 666.7 | 2 | 50.8 | 5 | 127.0 | 3 3/8 | 85.7 | 26 | 660.4 | 28 1/2 | 723.9 | 29 1/4 | 742.9 | 24 | 1 3/8 | 34.9 | 31 3/4 | 806.4 | 1/4 | 6.35 | 118 | 107 |
| 28 | 36 1/2 | 927.1 | 28 1/4 | 717.6 | 2 1/16 | 52.4 | 5 1/16 | 128.6 | 3 7/16 | 87.3 | 28 | 711.2 | 30 3/4 | 781.0 | 31 1/4 | 793.7 | 28 | 1 3/8 | 34.9 | 34 | 863.6 | 1/4 | 6.35 | 134 | 122 |
| 30 | 38 3/4 | 984.2 | 30 1/4 | 768.3 | 2 1/8 | 54.0 | 5 1/8 | 130.2 | 3 1/2 | 88.9 | 30 | 762.0 | 32 3/4 | 831.8 | 33 3/4 | 857.2 | 28 | 1 3/8 | 34.9 | 36 | 914.4 | 1/4 | 6.35 | 153 | 138 |
| 32 | 41 3/4 | 1060.4 | 32 1/4 | 819.1 | 2 1/4 | 57.1 | 5 1/4 | 133.3 | 3 5/8 | 92.1 | 32 | 812.8 | 35 | 889.0 | 35 3/4 | 908.0 | 28 | 1 5/8 | 41.3 | 38 1/2 | 977.9 | 5/16 | 7.94 | 190 | 170 |
| 34 | 43 3/4 | 1111.2 | 34 1/4 | 869.9 | 2 5/16 | 58.7 | 5 5/16 | 134.9 | 3 11/16 | 93.7 | 34 | 863.6 | 37 | 939.8 | 37 3/4 | 958.8 | 32 | 1 5/8 | 41.3 | 40 1/2 | 1028.7 | 5/16 | 7.94 | 212 | 184 |
| 36 | 46 | 1168.4 | 36 1/4 | 920.7 | 2 3/8 | 60.3 | 5 3/8 | 136.5 | 3 3/4 | 95.2 | 36 | 914.4 | 39 1/4 | 996.9 | 40 1/4 | 1022.3 | 32 | 1 5/8 | 41.3 | 42 3/4 | 1085.8 | 5/16 | 7.94 | 242 | 211 |
| 38 | 48 3/4 | 1238.2 | 38 1/4 | 971.5 | 2 3/8 | 60.3 | 5 3/8 | 136.5 | 3 3/4 | 95.2 | 38 | 965.2 | 41 3/4 | 1060.4 | 42 1/4 | 1073.1 | 32 | 1 5/8 | 41.3 | 45 1/4 | 1149.3 | 3/8 | 9.53 | 284 | 249 |
