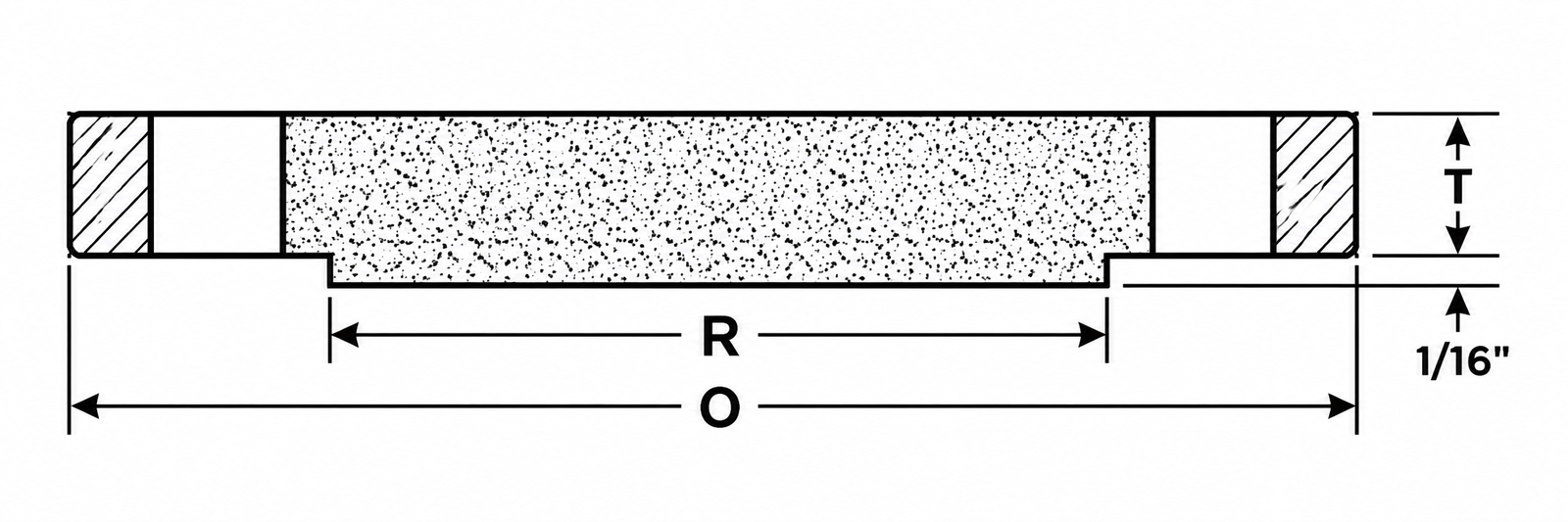

DIN 2527 PN6 Blind Flange Dimensions
| Drilling | Weight |
| Nom Size | Bolt Circle | Bolt Length | Hole Dia | # of Holes | Weld Neck | Slip On | Blind |
| 26 | 30.63 | 8 | 1.13 | 28 | 245 | 225 | 580 |
| 28 | 32.63 | 8.25 | 1.13 | 28 | 260 | 250 | 750 |
| 30 | 34.88 | 8.5 | 1.13 | 32 | 305 | 295 | 890 |
| 32 | 36.88 | 8.75 | 1.13 | 36 | 340 | 325 | 1050 |
| 34 | 38.88 | 9 | 1.13 | 40 | 375 | 355 | 1225 |
| 36 | 41.5 | 9.75 | 1.25 | 40 | 480 | 465 | 1500 |
| 38 | 43.5 | 10 | 1.25 | 40 | 510 | 490 | 1700 |
| 40 | 45.5 | 10.25 | 1.25 | 44 | 540 | 530 | 1975 |
| 42 | 47.75 | 10.75 | 1.25 | 48 | 640 | 620 | 2225 |
| 44 | 50.25 | 11.5 | 1.38 | 44 | 760 | 760 | 2625 |
| 46 | 52.25 | 12.25 | 1.38 | 48 | 880 | 880 | 2950 |
| 48 | 54.25 | 12.25 | 1.38 | 48 | 920 | 920 | 3300 |
| 52 | 58.75 | – | 1.5 | 52 | 1075 | – | – |
| 54 | 60.75 | – | 1.5 | 52 | 1200 | 1150 | – |
| 60 | 66.75 | – | 1.5 | 60 | 1325 | 1450 | – |
| 66 | 74 | – | 1.63 | 60 | 1675 | – | – |
| 72 | 80 | – | 1.63 | 72 | 1850 | – | – |
