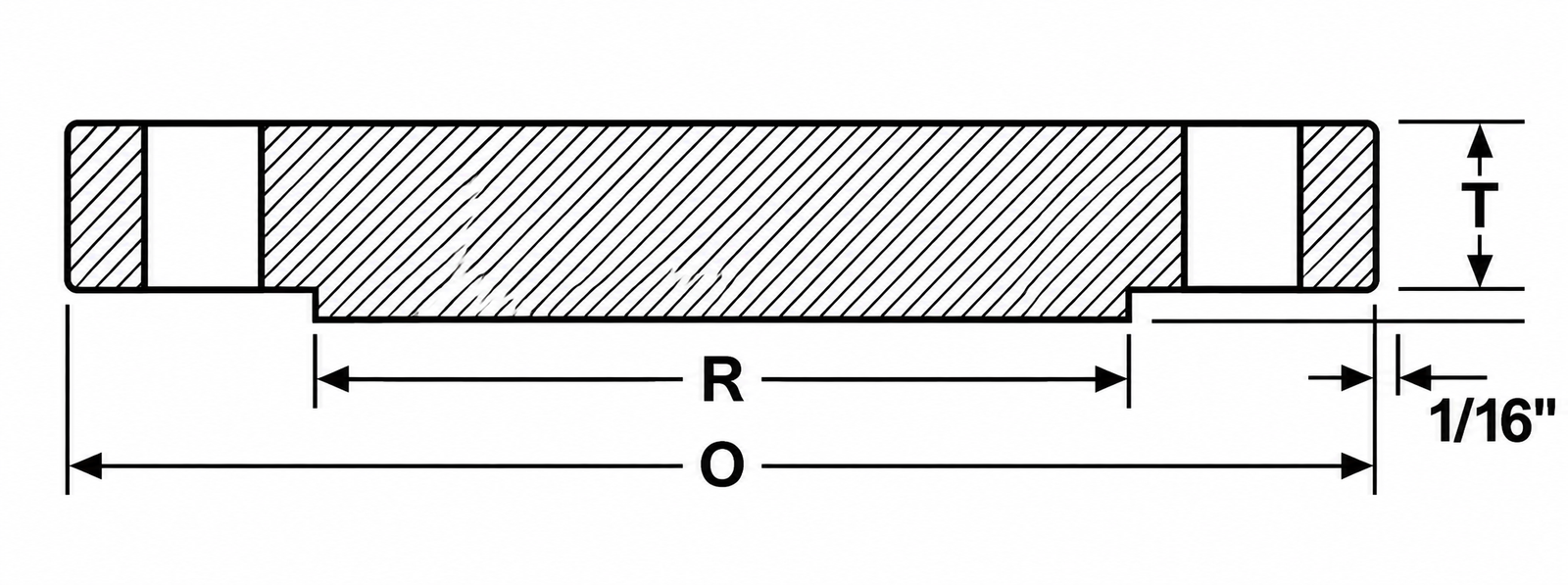

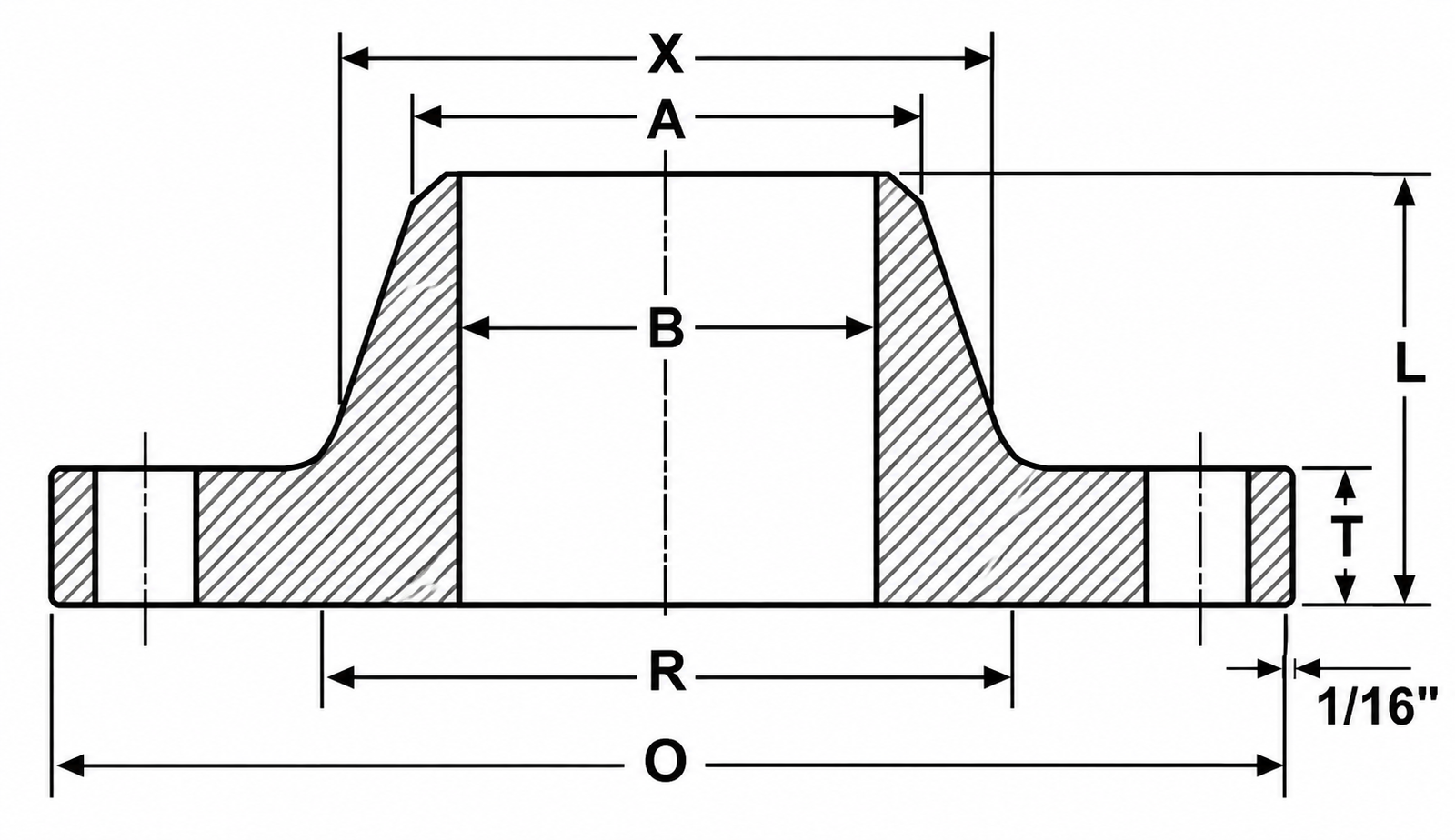

| Nom Size | OD (O) | Thickness | OD of RF (R) | Dia at Base (X) | Borea (B) | LTH (L) | Drilling | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slip On | Blind | Bolt Circle | Bolt Length | Hole Dia | # of Holes | Slip On | Blind | ||||||
| 26 | 33 | 1.25 | 1.25 | 30 | 28.5 | 26.25 | 2.25 | 31 | 5 | 1 | 32 | 120 | 290 |
| 28 | 35 | 1.25 | 1.38 | 32 | 30.5 | 28.25 | 2.25 | 33 | 5.25 | 1 | 36 | 140 | 360 |
| 30 | 37 | 1.25 | 1.38 | 34 | 32.5 | 30.25 | 2.25 | 35 | 5.25 | 1 | 36 | 150 | 405 |
| 32 | 39.5 | 1.25 | 1.5 | 36.25 | 34.63 | 32.25 | 2.5 | 37.38 | 5.5 | 1.13 | 40 | 170 | 500 |
| 34 | 41.5 | 1.25 | 1.63 | 38.25 | 36.63 | 34.25 | 2.5 | 39.38 | 5.75 | 1.13 | 40 | 180 | 600 |
| 36 | 43.5 | 1.25 | 1.63 | 40.25 | 38.63 | 36.25 | 2.5 | 41.38 | 5.75 | 1.13 | 44 | 190 | 660 |
| 42 | 50 | 1.25 | 1.88 | 46.5 | 44.75 | 42.25 | 2.75 | 47.75 | 6.25 | 1.25 | 48 | 235 | 1000 |
| 48 | 56 | 1.25 | 2.13 | 52.5 | 50.75 | 48.25 | 2.88 | 53.75 | 6.5 | 1.25 | 56 | 270 | 1450 |
| 54 | 62.5 | 1.38 | 2.38 | 59 | 57.25 | 54.25 | 3.13 | 60.25 | 6.75 | 1.25 | 68 | 335 | 2000 |
| 60 | 68.5 | 1.63 | 2.63 | 65 | 63.25 | 60.25 | 3.63 | 66.25 | 7.25 | 1.25 | 72 | 450 | 2675 |
| 66 | 75.5 | 1.75 | 2.88 | 71.63 | 69.5 | 66.25 | 4 | 73 | 8 | 1.38 | 72 | 590 | 3550 |
| 72 | 81.5 | 2 | 3.13 | 77.63 | 75.5 | 72.25 | 4.5 | 79 | 8.5 | 1.38 | 80 | 730 | 4500 |
