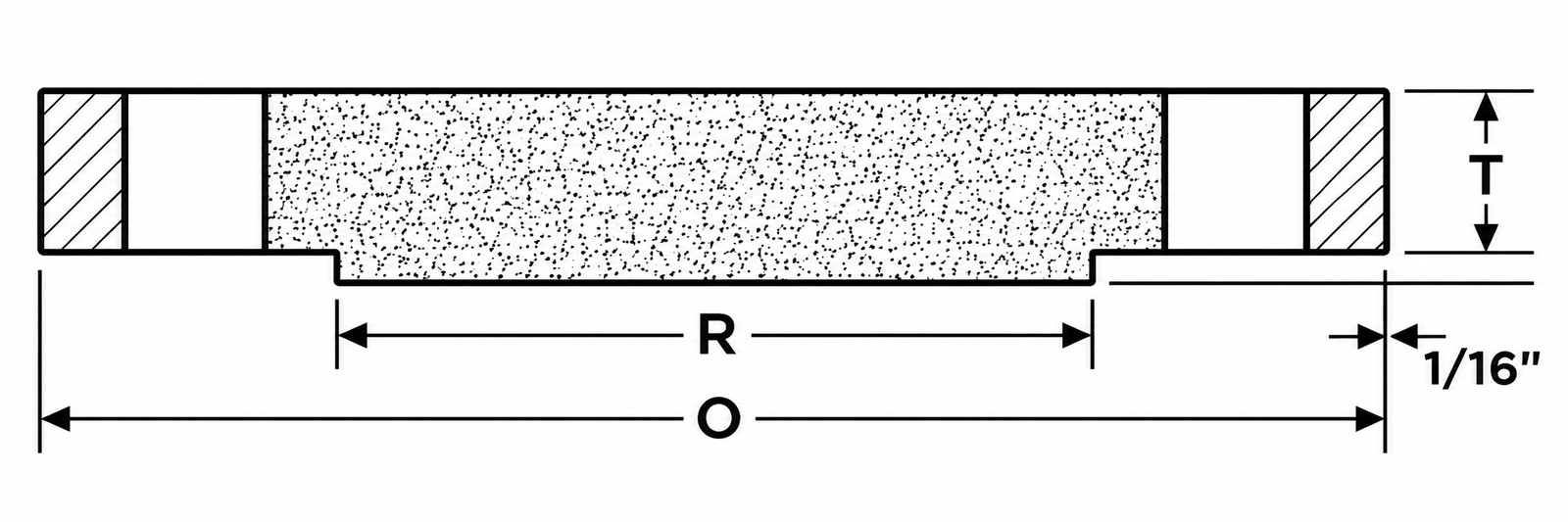

CLASS 75SO Flanges Dimensions

Nom Size	OD	Slip On / Blind		OD of RF	Dia at Base	Borea	LTH	Bolt Circle	Bolt Length	Hole Dia	# of Holes	Weight
Nom Size	OD	O	T	OD of RF	Dia at Base	Borea	LTH	Bolt Circle	Bolt Length	Hole Dia	# of Holes	Slip On	Blind
26	33	1.25	1.25	30	28.5	26.25	2.25	31	5	1	32	120	290
28	35	1.25	1.38	32	30.5	28.25	2.25	33	5.25	1	36	140	360
30	37	1.25	1.38	34	32.5	30.25	2.25	35	5.25	1	36	150	405
32	39.5	1.25	1.5	36.25	34.63	32.25	2.5	37.38	5.5	1.13	40	170	500
34	41.5	1.25	1.63	38.25	36.63	34.25	2.5	39.38	5.75	1.13	40	180	600
36	43.5	1.25	1.63	40.25	38.63	36.25	2.5	41.38	5.75	1.13	44	190	660
42	50	1.25	1.88	46.5	44.75	42.25	2.75	47.75	6.25	1.25	48	235	1000
48	56	1.25	2.13	52.5	50.75	48.25	2.88	53.75	6.5	1.25	56	270	1450
54	62.5	1.38	2.38	59	57.25	54.25	3.13	60.25	6.75	1.25	68	335	2000
60	68.5	1.63	2.63	65	63.25	60.25	3.63	66.25	7.25	1.25	72	450	2675
66	75.5	1.75	2.88	71.63	69.5	66.25	4	73	8	1.38	72	590	3550
72	81.5	2	3.13	77.63	75.5	72.25	4.5	79	8.5	1.38	80	730	4500
