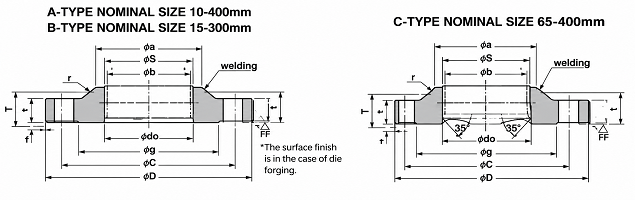

JIS B2220 30k Flanges Dimensions

Nominal	Outside	Inside	Outside	Sectional Dimensions of Flange							Bolt Hole			Nominal	Approx.
Dia. of	Dia. of	Dia. of	Dia. of	t	T	Dia. of Hub		r	Dia. of	Dia. of	Bolt.	No.	Hole	Bolt	Weight
Flange	Steel	Flange	Flange			a	b		Face	Raised Face	Circle	of Bolt	Dia.	Size	(kg)
	Pipe	do	D			a	b		f	g	Dia	Holes	h		SOH(A)	SOH(B.C)	BL
10	17.3	17.8	110	16	24	30	34	4	1	52	75	4	19	M16	1	1	1
15	21.7	22.2	115	18	26	36	40	5	1	55	80	4	19	M16	1.24	1.22	1.25
20	27.2	27.7	120	18	28	42	46	5	1	60	85	4	19	M16	1.36	1.34	1.38
25	34	34.5	130	20	30	50	54	5	1	70	95	4	19	M16	1.77	1.75	1.84
32	42.7	43.2	140	22	32	60	64	6	2	80	105	4	19	M16	2.17	2.15	2.32
40	48.6	49.1	160	22	34	66	70	6	2	90	120	4	23	M20	2.82	2.79	3
50	60.5	61.1	165	22	36	82	86	6	2	105	130	8	19	M16	2.89	2.86	3.14
65	76.3	77.1	200	26	40	102	106	8	2	130	160	8	23	M20	4.88	4.96	5.5
80	89.1	90	210	28	44	115	121	8	2	140	170	8	23	M20	5.7	5.8	6.63
90	101.6	102.6	230	30	46	128	134	8	2	150	185	8	25	M22	7.13	7.25	8.55
100	114.3	115.4	240	32	48	141	147	8	2	160	195	8	25	M22	8.01	8.16	10
125	139.8	141.2	275	36	54	166	172	8	2	195	230	8	25	M22	11.6	11.9	15.3
150	165.2	166.6	325	38	58	196	204	8	2	235	275	12	27	M24	17	17.3	22.2
200	216.3	218	370	42	64	248	256	8	2	280	320	12	27	M24	22.2	22.6	32.6
250	267.4	269.5	450	48	72	306	314	10	2	345	390	12	33	M30×3	36.8	37.5	55.2
300	318.5	321	515	52	78	360	370	10	3	405	450	16	33	M30×3	49.1	50	77.9
350	355.6	358.1	560	54	84	402	412	12	3	450	495	16	33	M30×3	60.4	61.5	96.9
400	406.4	409	630	60	92	456	468	15	3	510	560	16	33	M36×3	82	83.7	136
