JIS B2220 40k Flanges Supplier in India

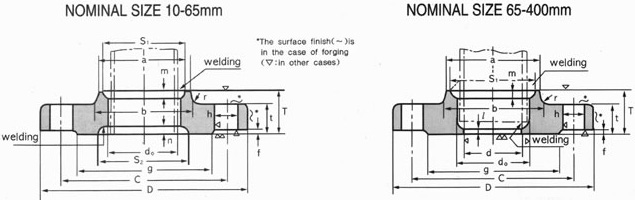

JIS B2220 40K Flanges Dimensions

Nominal Diameter of Flange	Outside Diameter of Steel Pipe	Inside Diameter of Flange do	Outside Diameter of Flange D	Sectional Dimensions of Flange								Bolt Hole				Reference				Approx Weight (kg)
				t	T	Diameter of Hub		Rad r	f	g	d	Bolt Circle Diameter C	Number of Bolt Holes	Hole Diameter h	Nominal Bolt Size	S1	m	S2	n	SOP	SOH	BL
				t	T	a	b	Rad r	f	g	d	Bolt Circle Diameter C	Number of Bolt Holes	Hole Diameter h	Nominal Bolt Size	S1	m	S2	n	SOP	SOH	BL
10	17.3	17.8	110	18	26	34	38	5	1	52	-	75	4	19	M16	28.0	6	28	5	1.0	1.11	1.2
15	21.7	22.2	115	20	30	39	43	5	1	55	-	80	4	19	M16	32.5	6	32.5	5	1.3	1.39	1.4
20	27.2	27.7	120	20	30	45	49	5	1	60	-	85	4	19	M16	38.0	6	38.0	5	1.5	1.51	1.6
25	34.0	34.5	130	22	32	55	59	5	1	70	-	95	4	19	M16	47.8	8	47.8	5	1.9	1.97	2.1
32	42.7	43.2	140	24	35	64	68	6	1	80	-	105	4	19	M16	56.5	8	56.5	5	2.4	2.50	2.7
40	48.6	49.1	160	24	35	70	74	6	2	90	-	120	4	23	M20	62.5	8	62.5	5	3.1	3.26	3.5
50	60.5	61.1	165	26	38	86	90	6	2	105	-	130	8	19	M20	74.5	7	74.5	5	3.3	3.47	3.9
65	76.3	77.1	200	30	44	106	110	8	2	130	62.3	160	8	23	M20	91.5	7	91.5	7	5.5	5.97	6.6
80	89.1	90.3	210	32	46	118	124	8	2	140	73.9	170	8	23	M20	105.5	7	105.5	7	6.4	6.76	8.0
100	114.3	115.4	250	36	52	145	151	8	2	165	97.1	205	8	25	M22	133.0	8.5	133.0	7	9.9	10.78	12.9
125	139.8	141.4	300	40	58	182	188	8	2	200	120.8	250	8	27	M24	160.5	9.5	160.5	7	15.9	16.97	20.8
150	165.2	167.0	355	44	64	200	208	8	2	240	143.2	295	12	33	M30	188.0	11	188.0	7	21.2	22.6	30.8
200	216.3	218.2	405	50	72	255	263	8	2	290	190.9	345	12	33	M30	243.0	13	243.0	7	32.1	34.9	46.8
250	267.4	269.5	475	56	80	310	318	10	2	355	237.2	410	12	33	M30	298.0	15	298.0	7	40.6	41.7	73.8
