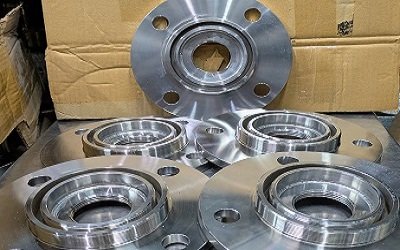

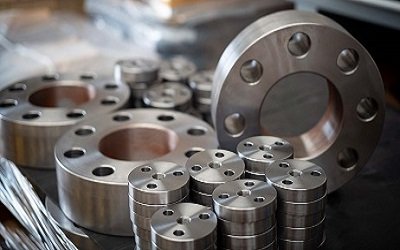

| NPS | Outside Diameter (mm) | Thickness (mm) | Flange Bore (inches) | Face to Face (inches) |
|---|---|---|---|---|
| ½″ | 73.15 | 9.5 | 0.84 | 1.61 |
| ¾″ | 88.90 | 9.5 | 1.05 | 1.72 |
| 1″ | 101.60 | 10.0 | 1.31 | 1.91 |
| 1½″ | 127.00 | 12.0 | 1.88 | 2.10 |
| 2″ | 152.40 | 12.0 | 2.38 | 2.28 |
| 3″ | 190.50 | 14.0 | 3.00 | 2.72 |
| 4″ | 228.60 | 16.0 | 3.75 | 3.15 |
| 6″ | 304.80 | 18.0 | 4.50 | 3.70 |
| 8″ | 355.60 | 20.0 | 5.50 | 4.50 |
| 10″ | 406.40 | 22.0 | 6.00 | 5.10 |
| 12″ | 457.20 | 24.0 | 7.00 | 5.80 |
| NPS | Flange Type | Weight / Pc (kg) |
|---|---|---|
| ½″ | Weld Neck | 1.98 |
| ¾″ | Weld Neck | 1.98 |
| 1″ | Weld Neck | 3.08 |
| 1¼″ | Weld Neck | 3.08 |
| 1½″ | Weld Neck | 3.96 |
| 2″ | Weld Neck | 5.95 |
| 2½″ | Weld Neck | 9.92 |
| 3″ | Weld Neck | 11.46 |
| 3½″ | Weld Neck | 11.90 |
| 4″ | Weld Neck | 16.31 |
| 5″ | Weld Neck | 20.94 |
| 6″ | Weld Neck | 25.79 |
| 8″ | Weld Neck | 41.66 |
| 10″ | Weld Neck | 53.57 |
| 12″ | Weld Neck | 87.30 |
| 14″ | Weld Neck | 113.09 |
| 16″ | Weld Neck | 138.89 |
| 18″ | Weld Neck | 163.80 |
| 20″ | Weld Neck | 195.55 |
| 22″ | Weld Neck | 223.32 |
| 24″ | Weld Neck | 265.87 |
Each flange follows a rigorous 8-step forging and quality-control process to ensure conformance with ASTM A182 and ASME standards.
Prime 304 stainless steel billet sourced and certified.
Heat to 1100°C – 1250°C for optimal forgeability.
Shape billet into flange geometry under controlled pressure.
Solution anneal at 1040°C – 1120°C, then quench.
CNC machining, drilling, and surface finishing.
Tensile, hardness, PMI, visual and impact tests performed.
