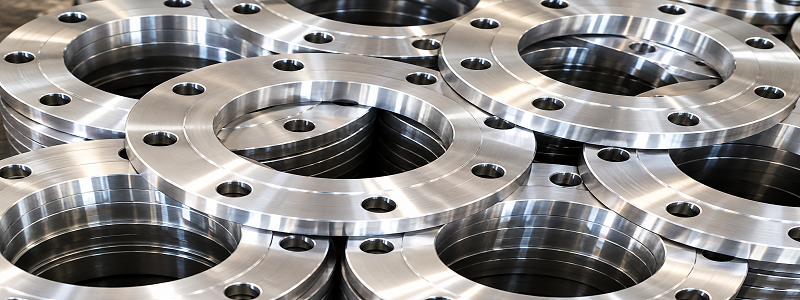

We are a manufacturer, supplier and exporter of Plate Flanges, which are accepted by major industries as a cost-efficient alternative to other types of flanges whose cost increases due to its expensive production pattern. Manufactured with procedures that are compliant with global flange standards, our Stainless Steel Plate Flanges are free from any cracks and deformities, due to which they last longer and provide an extended service lifespan. Our Carbon Steel Plate special maintenance needs,and added advantage to use them. We supply these ANSI B16.5 Plate Flanges to the irrigation industry.
| Material Category | Available Grades |
|---|---|
| Stainless Steel Flanges | ASTM A182 / A240 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L. |
| Duplex & Super Duplex Steel Flanges | ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
| Carbon Steel Flanges | ASTM/ASME A/SA 105, ASTM/ASME A350, ASTM A181 LF2, ASTM A516 Gr.70, ASTM A36, ASTM A694 F42, F46, F52, F60, F65, F70. |
| Low Temperature Carbon Steel Flanges | ASTM A350 LF2, LF3. |
| Alloy Steel Flanges | ASTM/ASME A/SA 182 & A387 F1, F5, F9, F11, F12, F22, F91. |
| Copper Alloy Flanges | ASTM SB61, SB62, SB151, SB152, UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), C10100, C10200, C10300, C10800, C12000, C12200. |
| Nickel Alloy Flanges | ASTM SB564, SB160, SB472, SB162, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel K500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C276 (UNS N10276), Alloy 20 (UNS N08020). |
Our Plate Flanges are used for general-purpose flanged joints in utility and process services. We maintain focus on standards compliance, dimensional accuracy, and material traceability to support project and replacement requirements.
Industries Served: oil & gas, petrochemical, refineries, power generation, EPC projects, marine, water treatment, and general engineering.
Supply Regions: India, GCC/Gulf markets, and global export projects with commercial support for manufacturer, supplier, stockist, and exporter requirements.
Request a Quote: Share your size, pressure class, material grade, and quantity for faster offer turnaround.
Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets
Certified stainless steel billets are selected according to ASTM, ASME, and EN standards.
Billets are heated and forged into the required flange shape for maximum strength.
Precision machining creates the bore, facing, bolt holes, and required dimensions.
Stress relieving and solution annealing are performed whenever required.
PMI, dimensional inspection, hydrostatic testing, and NDT ensure product quality.
Flanges are cleaned, pickled, passivated, and finished as per customer requirements.
Each flange receives grade, size, heat number, and standard identification markings.
Products are packed securely with flange protectors, wooden pallets, and export-ready crates.
When should I choose a Plate Flange instead of a Forged Flange?
Plate Flanges, typically cut from flat steel plates such as ASTM A240 or IS 2062, are a cost-effective choice for low-pressure applications, non-critical water lines, and light-duty structural connections. They are generally not recommended for high-pressure or elevated-temperature oil and gas service.
Can Plate Flanges be custom machined to non-standard dimensions?
Yes. Since Plate Flanges are profile-cut directly from steel plates, we can manufacture custom outer diameters (OD), inner diameters (ID), and bolt-hole configurations, including AWWA, BS, and other international standards, to match existing equipment and project requirements.
