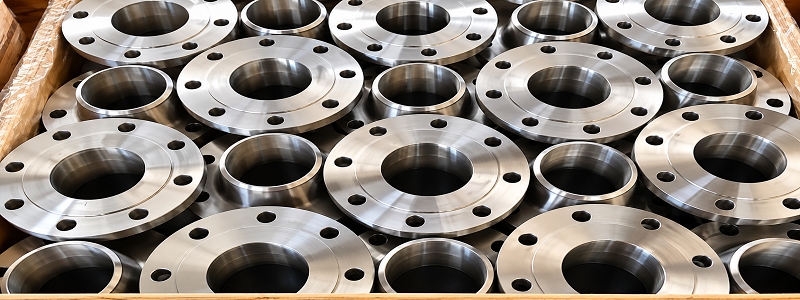

Socket Weld Flanges (SWRF) are counter-bored i.e. the bore of the Flange and pipe, both are same, thereby providing a good ow of the product through the pipe. Initially used for small-sized high-pressure pipes, our SMO 254 Socket Weld Flanges are now used in high-pressure systems too. Our Stainless Steel Socket Weld Flanges are oxidation resistant and promote better weldability and fabricability. We seek to offer ANSI B16.5 Carbon Steel Socket Weld Flanges that have excellent stress corrosion cracking resistance to the LNG, seawater and mining industry.
| Material Category | Available Grades |
|---|---|
| Stainless Steel Flanges | ASTM A182 / A240 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L. |
| Duplex & Super Duplex Steel Flanges | ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
| Carbon Steel Flanges | ASTM/ASME A/SA 105, ASTM/ASME A350, ASTM A181 LF2, ASTM A516 Gr.70, ASTM A36, ASTM A694 F42, F46, F52, F60, F65, F70. |
| Low Temperature Carbon Steel Flanges | ASTM A350 LF2, LF3. |
| Alloy Steel Flanges | ASTM/ASME A/SA 182 & A387 F1, F5, F9, F11, F12, F22, F91. |
| Copper Alloy Flanges | ASTM SB61, SB62, SB151, SB152, UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), C10100, C10200, C10300, C10800, C12000, C12200. |
| Nickel Alloy Flanges | ASTM SB564, SB160, SB472, SB162, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel K500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C276 (UNS N10276), Alloy 20 (UNS N08020). |
Our Socket Weld Flanges are used for small-bore high-pressure service requiring strong socket-welded joints. We maintain focus on standards compliance, dimensional accuracy, and material traceability to support project and replacement requirements.
Industries Served: oil & gas, petrochemical, refineries, power generation, EPC projects, marine, water treatment, and general engineering.
Supply Regions: India, GCC/Gulf markets, and global export projects with commercial support for manufacturer, supplier, stockist, and exporter requirements.
Request a Quote: Share your size, pressure class, material grade, and quantity for faster offer turnaround.
Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets
Certified stainless steel billets are selected according to ASTM, ASME, and EN standards.
Billets are heated and forged into the required flange shape for maximum strength.
Precision machining creates the bore, facing, bolt holes, and required dimensions.
Stress relieving and solution annealing are performed whenever required.
PMI, dimensional inspection, hydrostatic testing, and NDT ensure product quality.
Flanges are cleaned, pickled, passivated, and finished as per customer requirements.
Each flange receives grade, size, heat number, and standard identification markings.
Products are packed securely with flange protectors, wooden pallets, and export-ready crates.
Why is an expansion gap required when welding Socket Weld Flanges?
During installation, the pipe is inserted into the socket until it bottoms out and is then backed off slightly to create an expansion gap of approximately 1/16 inch (1.6 mm). This gap allows for thermal expansion and helps prevent weld cracking caused by bottoming-out stresses during operation.
What pressure classes are available for your Socket Weld Flanges?
We manufacture forged Socket Weld Flanges in accordance with ASME B16.5 standards and offer them in Class 150, 300, 600, 900, 1500, and 2500 pressure ratings for high-pressure, leak-resistant piping systems.
What is the benefit of using Socket Weld connections?
Socket Weld Flanges feature a recessed socket that allows the pipe to be inserted before welding, eliminating the need for complex pipe beveling while ensuring accurate alignment. They are commonly used for NPS 2 and smaller pipelines in high-pressure applications.
Which material grades do you stock for Socket Weld Flanges?
We supply Socket Weld Flanges in Stainless Steel (ASTM A182 F304/F304L and F316/F316L), Carbon Steel (ASTM A105), Alloy Steel, and Duplex Steel grades to suit a wide range of industrial applications.
Are your Socket Weld Flanges tested for high-pressure applications?
Yes. All forged Socket Weld Flanges undergo rigorous quality inspections and testing to verify their integrity and ensure they are suitable for refinery, petrochemical, and EPC project requirements.
