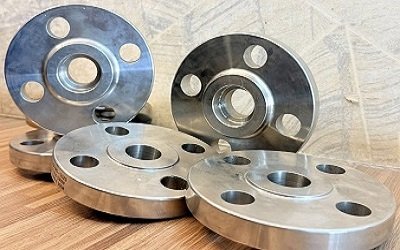

The most noteworthy feature of these changes is that they can be joined to a pipe without welding. The bore of Nickel Threaded / Screwed Flanges have threads and can be fitted to pipes that have external threads. Stainless Steel Threaded / Screwed Flanges are low priced, t best for small pipes and can be used in low-pressure applications. They are very beneficial in highly combustible industries where welding is dangerous. We are certified to cater to the challenging requisites of a number of industries through our outstanding products and extraordinary services.
| Material Category | Available Grades |
|---|---|
| Stainless Steel Flanges | ASTM A182 / A240 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L. |
| Duplex & Super Duplex Steel Flanges | ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61. |
| Carbon Steel Flanges | ASTM/ASME A/SA 105, ASTM/ASME A350, ASTM A181 LF2, ASTM A516 Gr.70, ASTM A36, ASTM A694 F42, F46, F52, F60, F65, F70. |
| Low Temperature Carbon Steel Flanges | ASTM A350 LF2, LF3. |
| Alloy Steel Flanges | ASTM/ASME A/SA 182 & A387 F1, F5, F9, F11, F12, F22, F91. |
| Copper Alloy Flanges | ASTM SB61, SB62, SB151, SB152, UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30), C10100, C10200, C10300, C10800, C12000, C12200. |
| Nickel Alloy Flanges | ASTM SB564, SB160, SB472, SB162, Nickel 200 (UNS N02200), Nickel 201 (UNS N02201), Monel 400 (UNS N04400), Monel K500 (UNS N05500), Inconel 800 (UNS N08800), Inconel 825 (UNS N08825), Inconel 600 (UNS N06600), Inconel 625 (UNS N06625), Inconel 601 (UNS N06601), Hastelloy C276 (UNS N10276), Alloy 20 (UNS N08020). |
Our Threaded Flanges are used for non-welded pipe connections where hot work is restricted or site assembly is preferred. We supply project and replacement requirements with controlled quality, dimensional checks, and material traceability as per ASME B16.5 / ASTM.
Industries Served: oil & gas, petrochemical, power, EPC, shipbuilding, water treatment, process manufacturing, and heavy engineering.
Supply Regions: India, GCC/Gulf countries, and global export destinations with commercial support for manufacturer, supplier, stockist, and exporter requirements.
Explore More: Flanges | Forged Fittings | Buttweld Fittings | Olets
Certified stainless steel billets are selected according to ASTM, ASME, and EN standards.
Billets are heated and forged into the required flange shape for maximum strength.
Precision machining creates the bore, facing, bolt holes, and required dimensions.
Stress relieving and solution annealing are performed whenever required.
PMI, dimensional inspection, hydrostatic testing, and NDT ensure product quality.
Flanges are cleaned, pickled, passivated, and finished as per customer requirements.
Each flange receives grade, size, heat number, and standard identification markings.
Products are packed securely with flange protectors, wooden pallets, and export-ready crates.
What pressure classes do your Threaded Forged Fittings cover?
Our Threaded Forged Fittings are manufactured in Class 2000, 3000, and 6000 pressure ratings in accordance with ASME B16.11 specifications. They feature NPT (National Pipe Thread) taper threads that provide high-integrity mechanical sealing without the need for welding.
