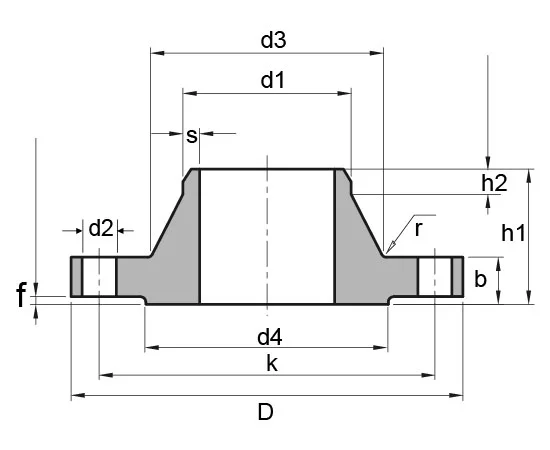

DIN 2634 PN25 Weldneck Flange Dimensions

Pipe Parameter	d1		Flange Dimension				Neck Size				Hub Size		Screw		Approx. Flange Weight
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	No. of Holes	d2	KG/PCS
10	–	14	90	16	60	35	25	1.8	4	6	40	2	4	14	0.67
10	17.2	–	90	16	60	35	28	1.8	4	6	40	2	4	14	0.66
15	–	20	95	16	65	38	30	2	4	6	45	2	4	14	0.75
15	21.3	–	95	16	65	38	32	2	4	6	45	2	4	14	0.75
20	–	25	105	18	75	40	38	2.3	4	6	58	2	4	14	1.07
20	26.9	–	105	18	75	40	40	2.3	4	6	58	2	4	14	1.07
25	–	30	115	18	85	40	42	2.6	4	6	68	2	4	14	1.29
25	33.7	–	115	18	85	40	46	2.6	4	6	68	2	4	14	1.28
32	–	38	140	18	100	42	52	2.6	6	6	78	2	4	18	1.88
32	42.4	–	140	18	100	42	56	2.6	6	6	78	2	4	18	1.86
40	–	44.5	150	18	110	45	60	2.6	6	7	88	3	4	18	2.1
40	48.3	–	150	18	110	45	64	2.6	6	7	88	3	4	18	2.08
50	–	57	165	20	125	48	72	2.9	6	8	102	3	4	18	2.81
50	60.3	–	165	20	125	48	75	2.9	6	8	102	3	4	18	2.78
65	76.1	–	185	22	145	52	90	2.9	6	10	122	3	8	18	3.61
80	88.9	–	200	24	160	58	105	3.2	8	12	138	3	8	18	4.62
100	–	106	235	24	190	65	128	3.6	8	12	162	3	8	22	6.42
100	114.3	–	235	24	190	65	134	3.6	8	12	162	3	8	22	6.27
125	–	133	270	26	220	68	155	4	8	12	188	3	8	26	8.83
125	139.7	–	270	26	220	68	162	4	8	12	188	3	8	26	8.61
150	–	159	300	28	250	75	182	4.5	10	12	218	3	8	26	11.67
150	166.3	–	300	28	250	75	192	4.5	10	12	218	3	8	26	11.29
175	193.7	–	330	28	280	75	218	5.6	10	15	248	3	12	26	13.11
200	219.1	–	360	30	310	80	244	6.3	10	16	278	3	12	26	16.61
250	–	267	425	32	370	88	292	7.1	12	18	335	3	12	30	23.99
250	273	–	425	32	370	88	298	7.1	12	18	335	3	12	30	23.48
300	323.9	–	485	34	430	92	352	8	12	18	395	4	16	30	30.74
350	355.6	–	555	38	490	100	398	8	12	20	450	4	16	33	47.2
350	–	368	555	38	490	100	398	8	12	20	450	4	16	33	44.22
400	406.4	–	620	40	550	110	452	8.8	12	20	505	4	16	36	61.69
400	–	419	620	40	550	110	452	8.8	12	20	505	4	16	36	57.88
500	508	–	730	44	660	125	558	10	12	20	615	4	20	36	89.57
600	610	–	845	46	770	125	660	11	12	20	720	5	20	39	114.96
700	711	–	960	46	875	125	760	12.5	12	20	820	5	24	42	139.5
800	813	–	1085	50	990	135	865	14.2	12	22	930	5	24	48	188.71
900	914	–	1185	54	1090	145	968	16	12	24	1030	5	28	48	231.48
1000	1016	–	1320	58	1210	155	1070	17.5	16	24	1140	5	28	56	303.52
