DIN 2641 PN 6 Lapped Flange

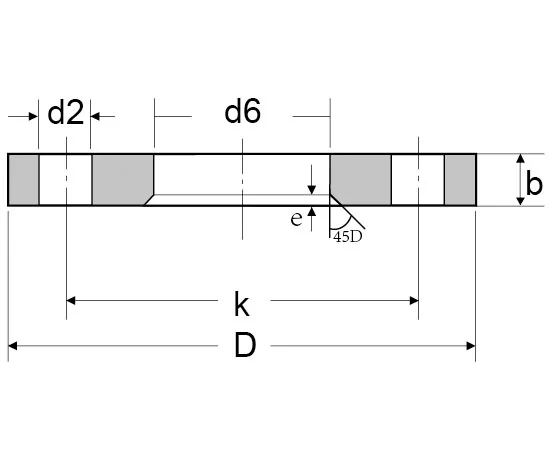

DIN 2641 PN6 Lapped Flange Dimensions

Pipe Parameter			Flange Dimension					Screw Dimension		Flange Weight
DN	ISO	DIN	D	d6	b	k	e	No. of holes	d2	KG/PCS
10	–	14	75	16	10	50	2	4	11	0.3
10	17.2	–	75	19	10	50	2	4	11	0.29
15	–	20	80	22	10	55	2	4	11	0.33
15	21.3	–	80	24	10	55	2	4	11	0.33
20	–	25	90	28	10	65	2	4	11	0.42
20	26.9	–	90	30	10	65	2	4	11	0.41
25	–	30	100	33	12	75	3	4	11	0.62
25	33.7	–	100	36	12	75	3	4	11	0.61
32	–	38	120	42	12	90	3	4	14	0.88
32	42.4	–	120	46	12	90	3	4	14	0.85
40	–	44.5	130	50	12	100	3	4	14	1.01
40	48.3	–	130	54	12	100	3	4	14	0.98
50	–	57	140	62	12	110	3	4	14	1.11
50	60.3	–	140	65	12	110	3	4	14	1.08
65	76.1	–	160	81	12	130	3	4	14	1.35
80	88.9	–	190	94	14	150	3	4	18	2.24
100	–	108	210	113	14	170	3	4	18	2.59
100	114.3	–	210	119	14	170	3	4	18	2.47
125	–	133	240	138	14	200	3	8	18	3.1
125	139.7	–	240	145	14	200	3	8	18	2.93
150	–	159	265	164	14	225	3	8	18	3.52
150	168.3	–	265	173	14	225	3	8	18	3.25
200	219.1	–	320	225	16	280	3	8	18	4.85
250	–	267	375	273	20	335	3	12	18	7.67
250	273	–	375	279	20	335	3	12	18	7.26
300	323.9	–	440	329	24	395	4	12	22	11.77
350	355.6	–	490	362	26	445	4	12	22	16.55
350	–	368	490	374	26	445	4	12	22	15.13
400	406.4	–	540	413	28	495	4	16	22	19.56
400	–	419	540	426	28	495	4	16	22	17.67
500	508	–	645	517	32	600	4	20	22	27.43
600	610	–	755	618	36	705	4	20	26	38.75
700	711	–	860	721	40	810	4	24	26	50.19
800	813	–	975	824	44	920	4	24	30	67.83
900	914	–	1075	926	48	1020	4	24	30	81.84
1000	1016	–	1175	1028	52	1120	4	28	30	95.74
1200	1220	–	1405	1232	60	1340	5	32	33	155.87
