DIN 2636 PN 64 Weldneck Flange

DIN 2636 PN64 Weldneck Flange Dimensions

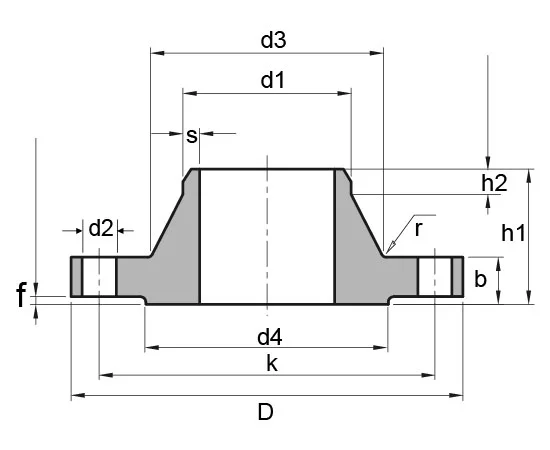

Pipe Parameter	d1		Flange Dimension				Neck Size				Hub Size		Screw		Approx. Flange Weight
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	No. of Holes	d2	KG/PCS
10	–	14	100	20	70	45	28	1.8	4	6	40	2	4	14	1.07
10	17.2	–	100	20	70	45	32	1.8	4	6	40	2	4	14	1.08
15	–	20	105	20	75	45	32	2	4	6	45	2	4	14	1.19
15	21.3	–	105	20	75	45	34	2	4	6	45	2	4	14	1.19
25	–	30	140	24	100	58	48	2.6	4	8	68	2	4	18	2.61
25	33.7	–	140	24	100	58	52	2.6	4	8	68	2	4	18	2.6
40	–	44.5	170	26	125	62	65	2.9	6	10	88	3	4	22	4
40	48.3	–	170	26	125	62	70	2.9	6	10	88	3	4	22	3.99
50	–	57	180	26	135	62	78	2.9	6	10	102	3	4	22	4.45
50	60.3	–	180	26	135	62	82	2.9	6	10	102	3	4	22	4.42
65	76.1	–	205	26	160	66	98	3.2	6	12	122	3	8	22	5.49
80	88.9	–	215	28	170	72	112	3.6	8	12	138	3	8	22	6.5
100	–	108	250	30	200	76	132	4	8	12	162	3	8	26	9.25
100	114.3	–	250	30	200	76	138	4	8	12	162	3	8	26	9.06
125	–	133	295	34	240	88	162	4.5	8	12	188	3	8	30	14.53
125	139.7	–	295	34	240	88	168	4.5	8	12	188	3	8	30	14.23
150	–	159	345	36	280	95	192	5.6	10	12	218	3	8	33	21.35
150	168.3	–	345	36	280	95	202	5.6	10	12	218	3	8	33	20.92
175	193.7	–	375	40	310	105	228	6.3	10	16	260	3	12	33	26.28
200	219.1	–	415	42	345	110	256	7.1	10	16	285	3	12	36	33.56
250	–	267	470	46	400	125	310	8.8	12	18	345	3	12	36	47.98
250	273	–	470	46	400	125	316	8.8	12	18	345	3	12	36	47.32
300	323.9	–	530	52	460	140	372	11	12	18	410	4	16	36	66.44
350	355.6	–	600	56	525	150	420	12.5	12	20	465	4	16	39	96.23
350	–	368	600	56	525	150	420	12.5	12	20	465	4	16	39	91.77
400	406.4	–	670	60	585	160	475	14.2	12	20	535	4	16	42	127.7
400	–	419	670	60	585	160	475	14.2	12	20	535	4	16	42	122.13
