DIN 2635 PN 40 Weldneck Flange

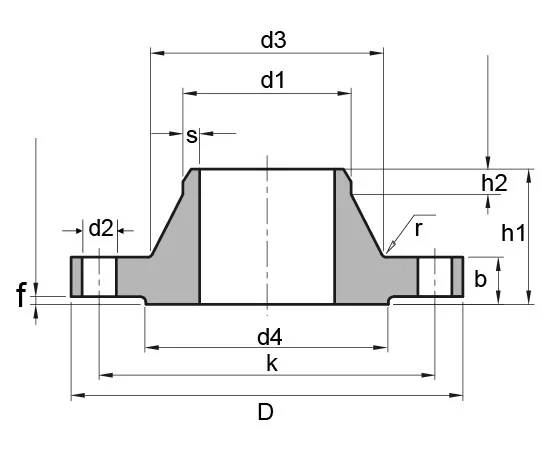

DIN 2635 PN 40 Weldneck Flange Dimensions

Pipe Parameter	d1		Flange Dimension				Neck Size				Hub Size		Screw		Approx. Flange Weight
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	No. of Holes	d2	KG/PCS
10	–	14	90	16	60	35	25	1.8	4	6	40	2	4	14	0.67
10	17.2	–	90	16	60	35	28	1.8	4	6	40	2	4	14	0.66
15	–	20	95	16	65	38	30	2	4	6	45	2	4	14	0.75
15	21.3	–	95	16	65	38	32	2	4	6	45	2	4	14	0.75
20	–	25	105	18	75	40	48	2.3	4	6	58	2	4	14	1.07
20	26.9	–	105	18	75	40	40	2.3	4	6	58	2	4	14	1.07
25	–	30	115	18	85	40	42	2.6	4	6	68	2	4	14	1.29
25	33.7	–	115	18	85	40	46	2.6	4	6	68	2	4	14	1.28
32	–	38	140	18	100	42	52	2.6	6	6	78	2	4	18	1.88
32	42.4	–	140	18	100	42	56	2.6	6	6	78	2	4	18	1.86
40	–	44.5	150	18	110	45	60	2.6	6	7	88	3	4	18	2.1
40	48.3	–	150	18	110	45	64	2.6	6	7	88	3	4	18	2.08
50	–	57	165	20	125	48	72	2.9	6	8	102	3	4	18	2.81
50	60.3	–	165	20	125	48	75	2.9	6	8	102	3	4	18	2.78
65	76.1	–	185	22	145	52	90	2.9	6	10	122	3	8	18	3.81
80	88.9	–	200	24	160	58	105	3.2	8	12	138	3	8	18	4.62
100	–	108	235	24	190	65	128	3.8	8	12	162	3	8	22	6.42
100	114.3	–	235	24	190	65	134	3.6	8	12	162	3	8	22	6.27
125	–	133	270	26	220	68	155	4	8	12	188	3	8	26	8.83
125	139.7	–	270	26	220	68	162	4	8	12	188	3	8	26	8.61
150	–	159	300	28	250	75	182	4.5	10	12	218	3	8	26	11.67
150	168.3	–	300	28	250	75	192	4.5	10	12	218	3	8	26	11.29
175	193.7	–	350	32	295	82	218	5.6	10	15	260	3	12	30	17.01
200	219.1	–	375	34	320	88	244	6.3	10	16	285	3	12	30	20.49
250	–	267	450	38	385	105	298	7.1	12	18	345	3	12	33	33.75
250	273	–	450	38	385	105	306	7.1	12	18	345	3	12	33	33.34
300	323.9	–	515	42	450	115	362	8	12	18	410	4	16	33	46.55
350	355.6	–	580	46	510	125	408	8.8	12	20	465	4	16	36	67.73
350	–	368	580	46	510	125	408	8.8	12	20	465	4	16	36	63.96
400	406.4	–	660	50	585	135	462	11	12	20	535	4	16	39	96.73
400	–	419	660	50	585	135	462	11	12	20	535	4	16	39	91.99
500	508	–	755	52	670	140	562	14.2	12	20	615	4	20	42	120.96
