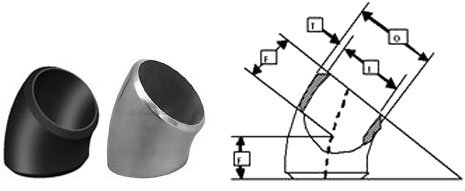

45° Short Radius Elbow

SPECIFICATIONS

Product Type

  • Butt Weld 45° Short Radius Elbow
  • 45 Degree Short Radius Elbow
  • Short Radius Elbow
  • Butt Weld Pipe Elbow
  • Seamless Butt Weld Elbow
  • Welded Butt Weld Elbow

Material Grades

  • ASTM A403 WP304 / WP304L
  • ASTM A403 WP316 / WP316L
  • ASTM A182 F316L / F304L
  • ASTM A815 S31803 / S32205
  • ASTM A815 S32750 / S32950
  • ASTM A234 WPB
  • ASTM A420 WPL3 / WPL6
  • ASTM A234 WP5 / WP9 / WP11 / WP22 / WP91
  • Inconel / Incoloy / Nickel Alloys

Manufacturing Standards

  • ASME / ANSI B16.9
  • ASME B16.25
  • ASME B16.28
  • MSS SP-43
  • API 590-605
  • JIS B2312
  • JIS B2313

Size Range

  • Size: 1/2" to 36"
  • Seamless: Up to 24"
  • Welded: 8" to 36"
  • Nominal Pipe Size (NPS)
  • Custom Sizes Available

Thickness & Schedule

  • Schedule 5S
  • Schedule 10S
  • Schedule 20
  • Schedule 40 / STD
  • Schedule 60
  • Schedule 80 / XS
  • Schedule 100 / 120 / 140
  • Schedule 160 / XXS
  • Custom Thickness

Elbow Configuration

  • 45° Short Radius
  • Short Radius Configuration
  • Equal End Diameters
  • Butt Weld Ends
  • Center-to-End Dimensions
  • 45° Flow Direction Change

Dimensional Tolerances

  • Outside Diameter at Bevel
  • Inside Diameter at End
  • Wall Thickness: ≥ 87.5% of Nominal
  • Center-to-End Dimension
  • Alignment of Ends
  • Angular Tolerance

End Preparation

  • Butt Weld Ends
  • Beveled Ends
  • ASME B16.25 End Preparation
  • Weldable Pipe Ends
  • Precision End Preparation

Manufacturing Process

  • Seamless Construction
  • Welded Construction
  • Mandrel Method
  • Heat Treatment
  • Precision Forming

Flange Dimensions Chart

Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-end
Dimen.
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
FODIDT
STANDARD WEIGHT
1/2405/80.8400.6220.1090.1
3/4407/161.0500.8240.1130.1
1407/81.3151.0490.1330.2
1 1/44011.6601.3800.1400.4
1 1/2401 1/81.9001.6100.1450.5
2401 3/82.3752.0670.1540.9
2 1/2401 3/42.8752.4690.2031.5
34023.5003.0680.2162.5
3 1/2402 1/44.0003.5480.2263.5
4402 1/24.5004.0260.2374.8
5403 1/85.5635.0470.2587.8
6403 3/46.6256.0650.28012
84058.6257.9810.32223
10406 1/410.75010.0200.36542
12–7 1/212.75012.0000.37561
14308 3/414.00013.2500.37579
16301016.00015.2500.375103
18–11 1/418.00017.2500.375132
202012 1/220.00019.2500.375160
222013 1/222.00021.2500.375195
24201524.00023.2500.375238


MANUFACTURING

Forging Process

Each flange follows a rigorous 8-step forging and quality-control process to ensure conformance with ASTM A182 and ASME standards.

1

Material Selection

Prime 304 stainless steel billet sourced and certified.

2

Billet Preparation

Heat to 1100°C – 1250°C for optimal forgeability.

3

Forging

Shape billet into flange geometry under controlled pressure.

4

Heat Treatment

Solution anneal at 1040°C – 1120°C, then quench.

5

Machining & Finishing

CNC machining, drilling, and surface finishing.

6

Testing & Inspection

Tensile, hardness, PMI, visual and impact tests performed.
