90° Long Radius Elbow Manufacturer in India

SPECIFICATIONS

Product Type

Butt Weld 90° Long Radius Elbow
90 Degree LR Elbow
Long Radius Elbow
Butt Welding Elbow
Seamless Elbow
Welded Elbow

Material Grades

Stainless Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Steel
Low Temperature Steel
Nickel Alloys
Copper Nickel Alloys

Manufacturing Standards

ASME / ANSI B16.9
ASME B16.25
ASME B16.28
MSS SP-43
JIS B2312
JIS B2313

Size Range

Size: 1/2" to 36"
Nominal Pipe Size (NPS)
Seamless Sizes
Welded Sizes
Custom Sizes Available

Thickness & Schedule

Schedule 5S
Schedule 10S
Schedule 20
Schedule 40 / STD
Schedule 60
Schedule 80 / XS
Schedule 100 / 120 / 140
Schedule 160 / XXS

Elbow Configuration

90° Long Radius
1.5D Radius
Butt Weld Ends
Equal End Diameters

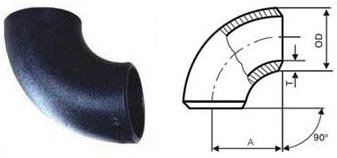

Center-to-End Dimensions
Smooth Flow Direction Change

Dimensions

ASME B16.9 Dimensions
ASME B16.28
MSS SP-43 Type A
MSS SP-43 Type B
JIS B2312
JIS B2313
Dimensions in Millimeters

End Preparation

Butt Weld Ends
Beveled Ends
ASME B16.25 End Preparation
Weldable Pipe Ends
Precision End Preparation

Manufacturing Process

Hot Forming
Cold Forming
Seamless Construction
Welded Construction
Heat Treatment
Precision Forming

Inspection & Testing

Visual Inspection
Dimensional Inspection
Material Verification
Surface Inspection
Quality Inspection

Flange Dimensions Chart

Nominal Diameter		Outside Diameter at Bevel		Center to End			Center to Center		Back to Face
				45°Elbow	90°Elbow		180°Elbow
				B	A		O		K
DN	NPS	Series A	Series B	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius	Short Radius
15	1/2	21.3	18	16	38	–	76	–	48	–
20	3/4	26.9	25	19	38	–	76	–	51	–
25	1	33.7	32	22	38	25	76	51	56	41
32	1.1/4	42.4	38	25	48	32	95	64	70	52
40	1.1/2	48.3	45	29	57	38	114	76	83	62
50	2	60.3	57	35	76	51	152	102	106	81
65	2.1/2	76.1(73)	76	44	95	64	190	127	132	100
80	3	88.9	89	51	114	76	229	152	159	121
90	3.1/2	101.6	–	57	133	89	267	178	184	140
100	4	114.3	108	64	152	102	305	203	210	159
125	5	139.7	133	79	190	127	381	254	262	197
150	6	168.3	159	95	229	152	457	305	313	237
200	8	219.1	219	127	305	203	610	406	414	313
250	10	273.0	273	159	381	254	762	508	518	391
300	12	323.9	325	190	457	305	914	610	619	467
350	14	355.6	377	222	533	356	1067	711	711	533
400	16	406.4	426	254	610	406	1219	813	813	610
450	18	457.2	478	286	686	457	1372	914	914	686
500	20	508.0	529	318	762	508	1524	1016	1016	762
550	22	559	–	343	838	559	1676	1118	1118	838
600	24	610	630	381	914	610	1829	1219	1219	914
650	26	660	–	406	991	660	1982	1320	–	–
700	28	711	720	438	1067	711	2134	1422	–	–
750	30	762	–	470	1143	762	2286	1524	–	–
800	32	813	820	502	1219	813	2438	1626	–	–
850	34	864	–	533	1295	864	2590	1728	–	–
900	36	914	920	565	1372	914	2744	1828	–	–
950	38	965	–	600	1448	965	2896	1930	–	–
1000	40	1016	1020	632	1524	1016	3048	2032	–	–
1050	42	1067	–	660	1600	1067	3200	2134	–	–
1100	44	1118	1120	695	1676	1118	3352	2236	–	–
1150	46	1168	–	727	1753	1168	3506	2336	–	–
1200	48	1220	1220	759	1829	1219	3658	2440	–	–

MANUFACTURING

Forging Process

Each flange follows a rigorous 8-step forging and quality-control process to ensure conformance with ASTM A182 and ASME standards.

Material Selection

Prime 304 stainless steel billet sourced and certified.

Billet Preparation

Heat to 1100°C – 1250°C for optimal forgeability.

Forging

Shape billet into flange geometry under controlled pressure.

Heat Treatment

Solution anneal at 1040°C – 1120°C, then quench.

Machining & Finishing

CNC machining, drilling, and surface finishing.

Testing & Inspection

Tensile, hardness, PMI, visual and impact tests performed.
